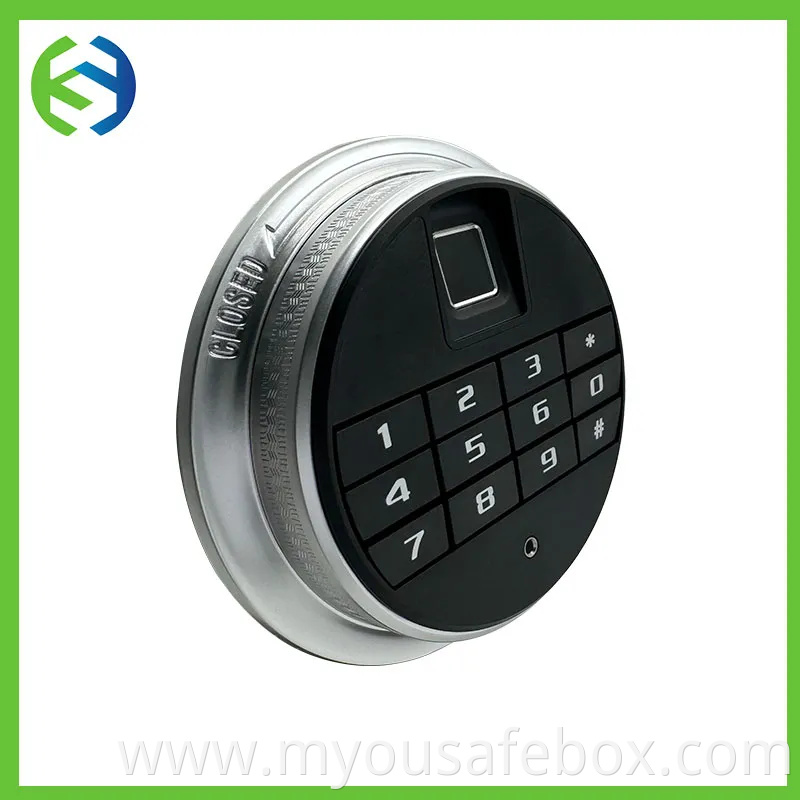

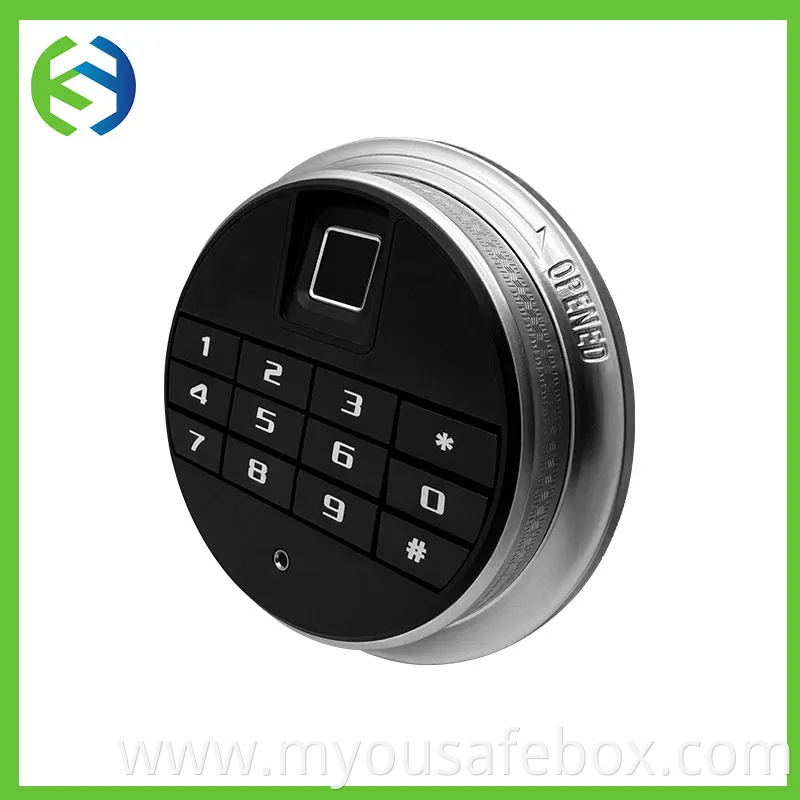

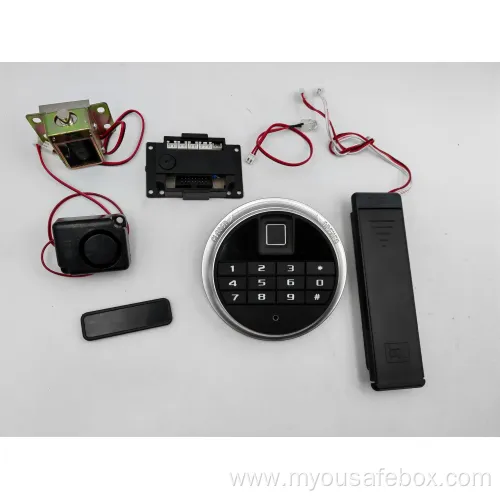

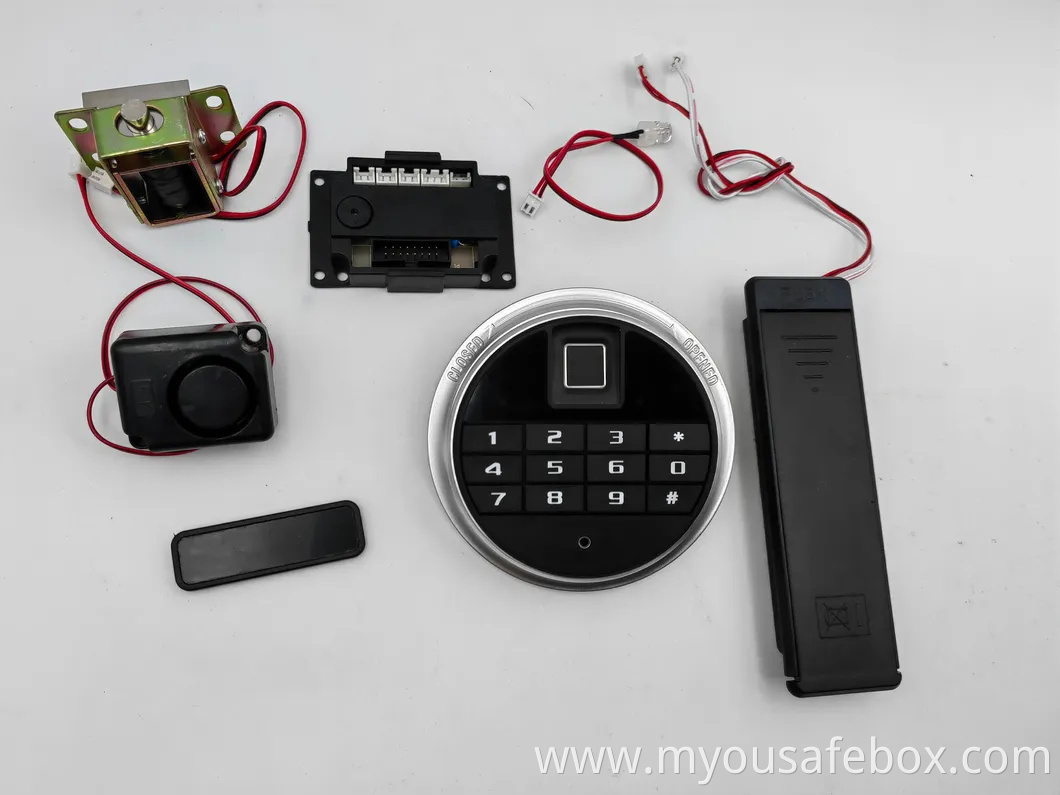

Integrated Biometric Safe Lock System

Basic Info.

• Model NO. SY-605-BZ
• Design Button
• Material Plastic
• Suitable for Safe
• Customized Non-Customized
• Usage Commercial, Household, Industrial
• Power Supply Four No. 5 "AA" Alkaline Batteries
• Delivery Time 20 Days
• Colour Black
• Working Voltage Range 4.5V to 6.8V
• External Power Supply Pj Interface
• Transport Package Carton
• Specification Standard
• Trademark Shuoyi
• Origin China
• HS Code 83030000
• Production Capacity 30000 pieces/Month

Product Description

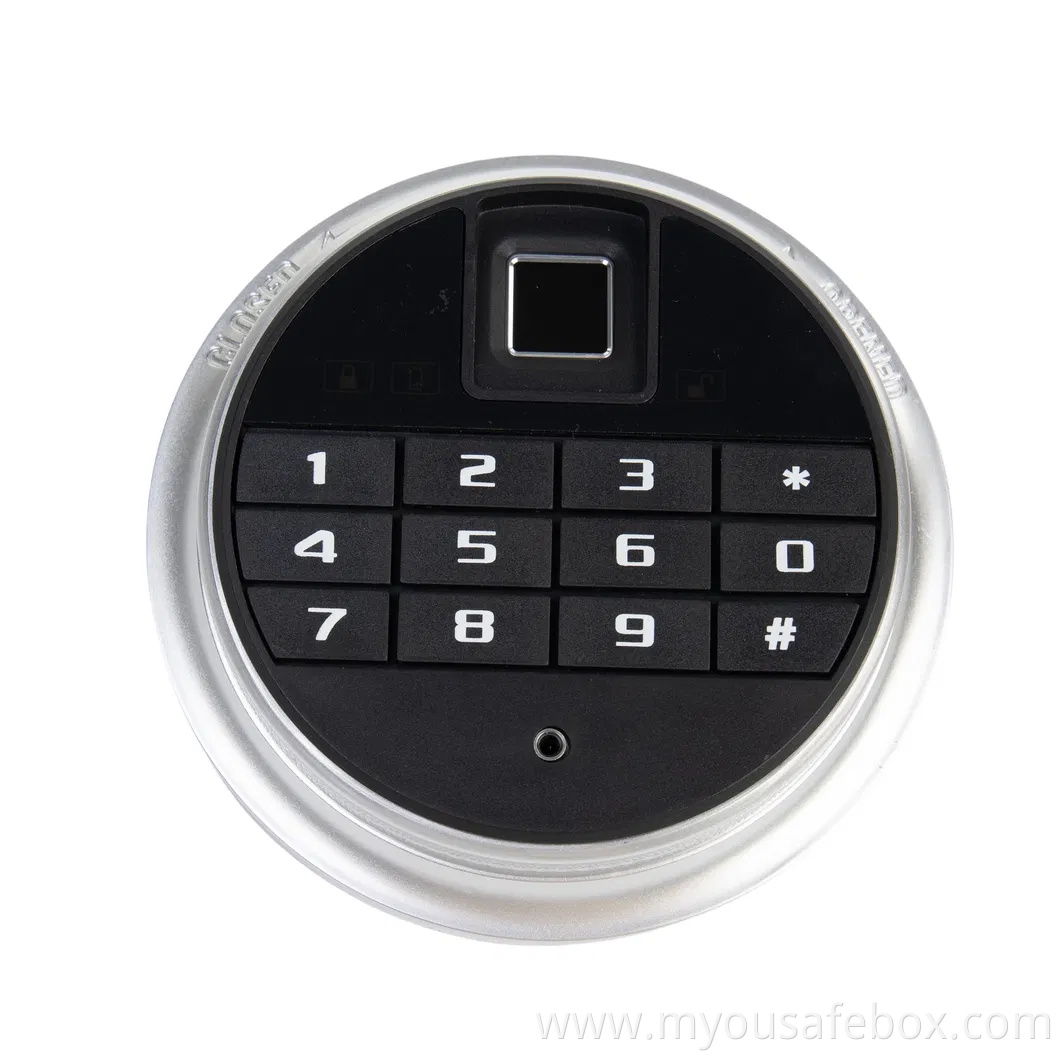

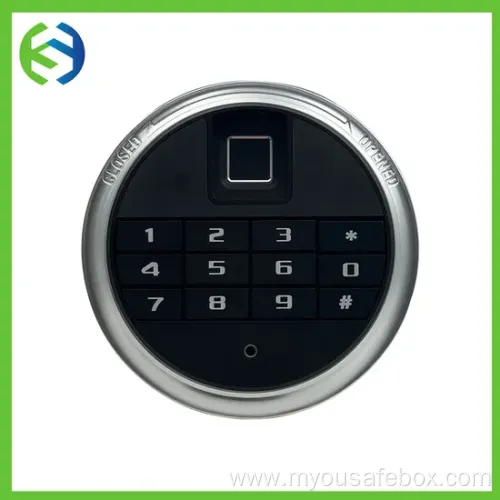

Panel features:

1. Adopting a rotary knob without the need for additional installation, it is aesthetically pleasing and easy to install.
2. Adopting semiconductor Fingerprint module, it is safer, more sensitive, has a high recognition rate, and consumes less power.
3. Equipped with password memory function, the power-off password will not be lost.
4. Adopting dual passwords for more flexible use.
5. Equipped with vibration alarm function, undervoltage alarm, and alarm for 3 incorrect password inputs or 5 fingerprint verifications.
6. Support multiple modes of door opening, single authentication mode (fingerprint door opening, password door opening) and dual authentication mode (fingerprint+password door opening) can be freely switched.
7. Support mute function, button sound can be freely turned on or off.

Technical Parameter

• Working power supply: Four No. 5 "AA" alkaline batteries
• Working voltage range: 4.2V to 6.8V
• Undervoltage point at work: 4.8V ± 0.30V
• Working current: ≤ 380mA
• Static current: <25uA
• Working temperature: -10 ºC ~ +70 ºC
• Working humidity: 10% to 90% RH

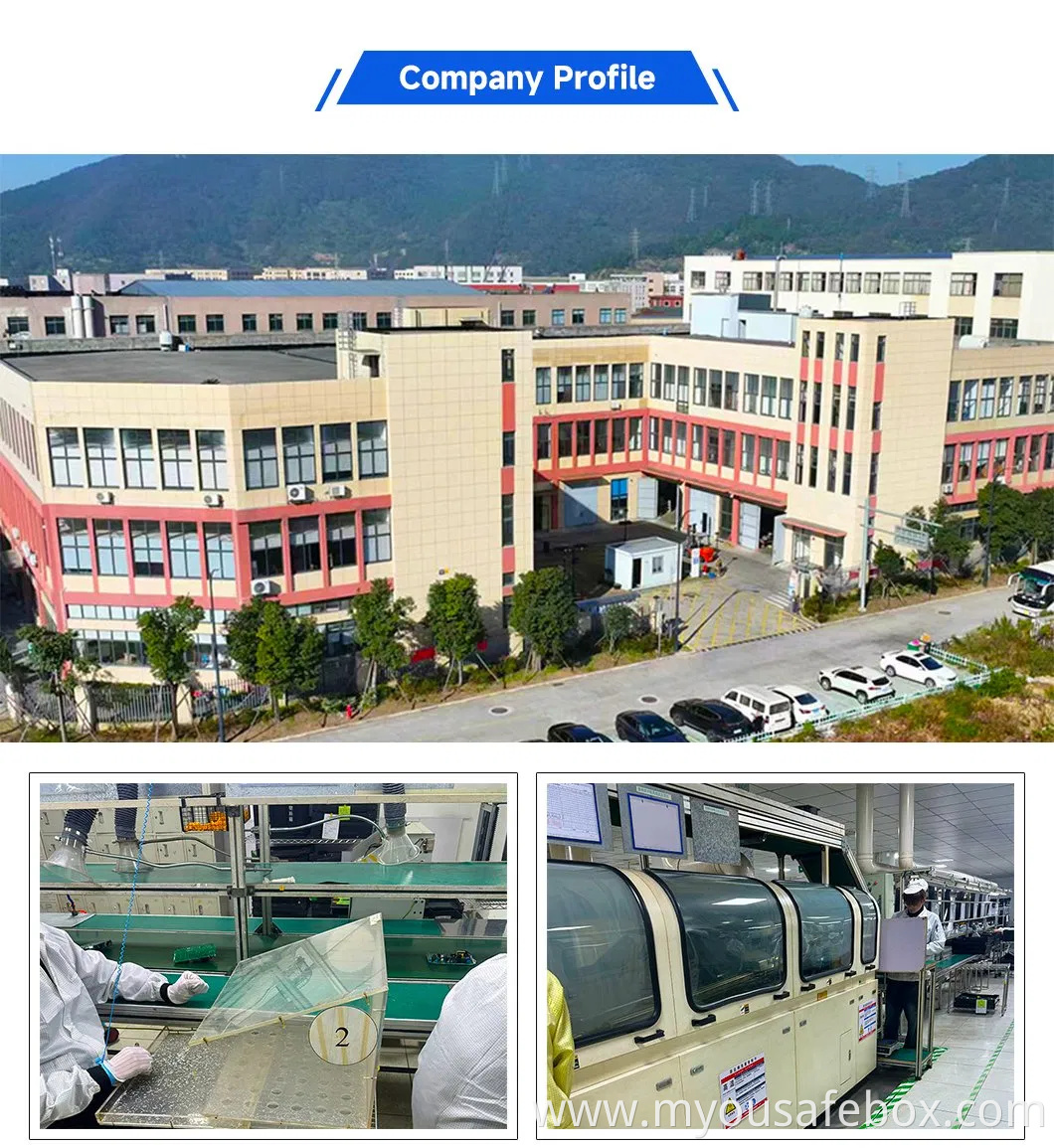

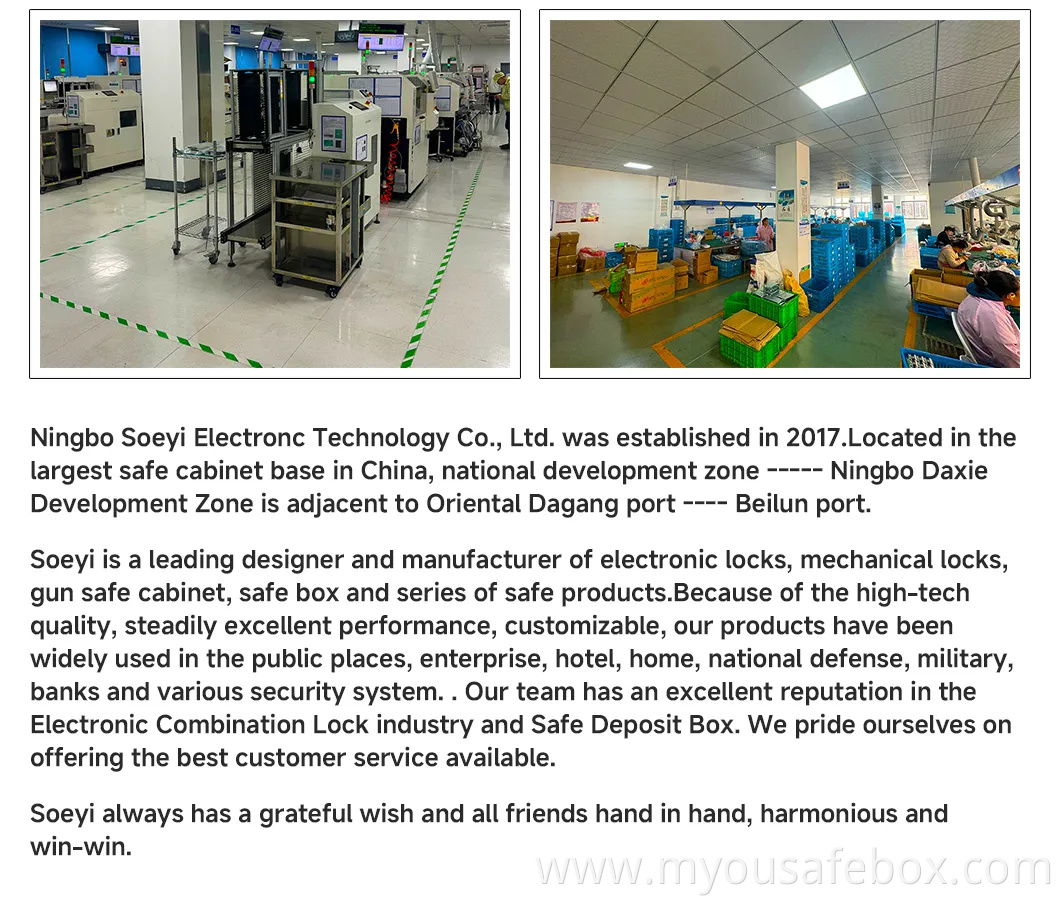

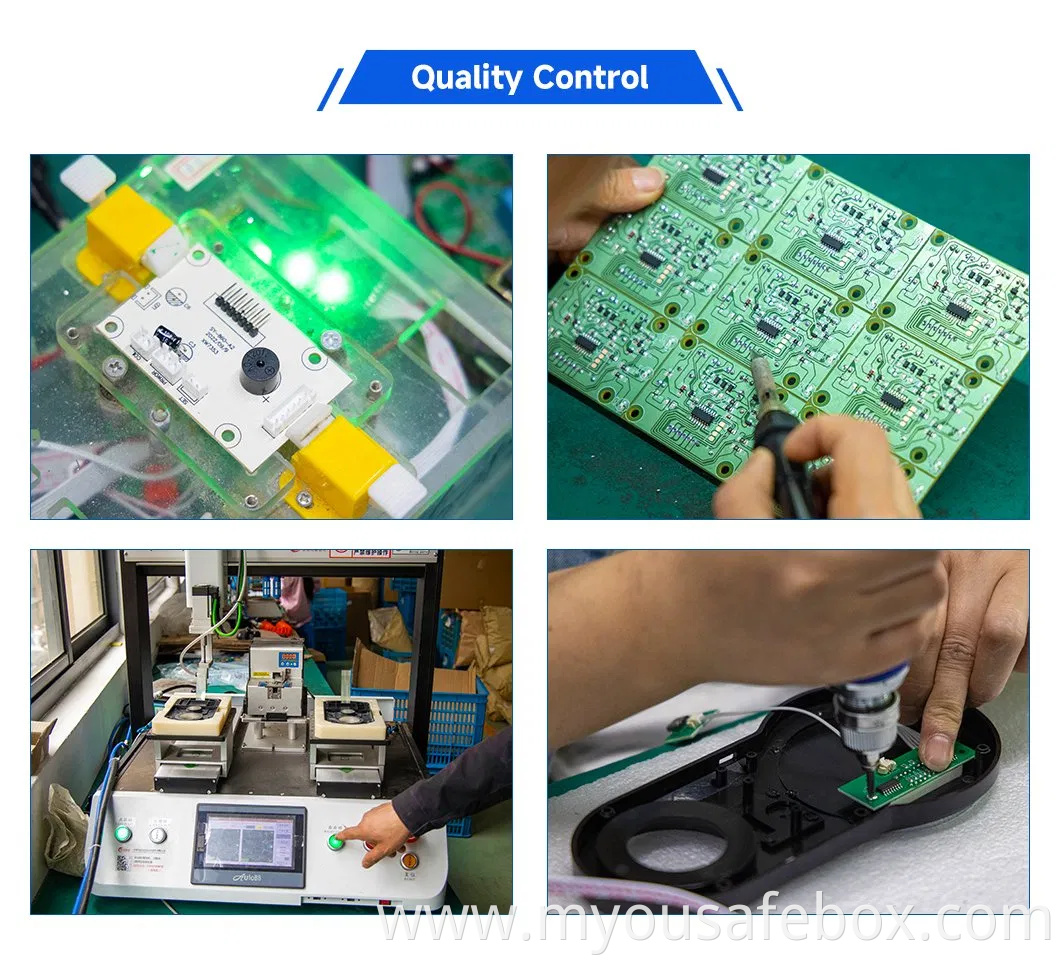

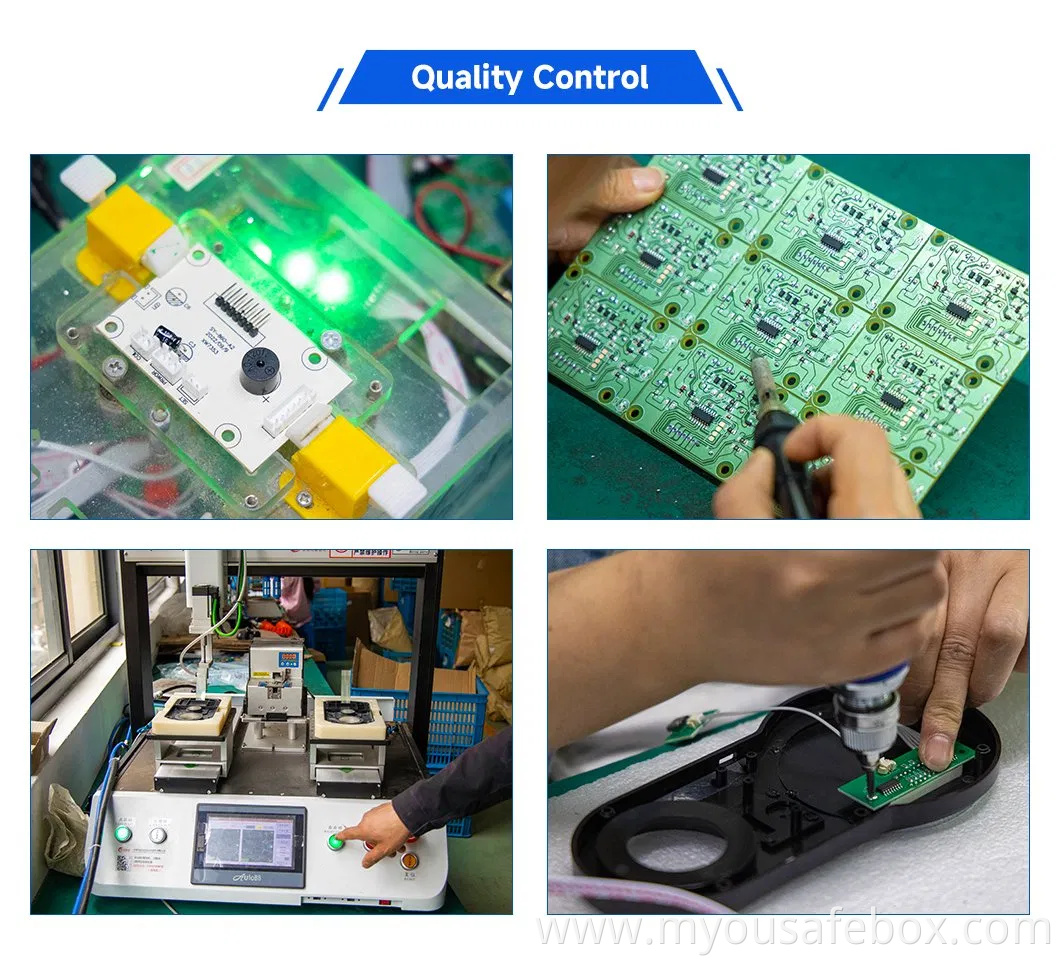

The company adopts advanced production technology, including production line configuration, automation level, and quality control system; Immersion welding, welding, semi-finished product testing, gluing, finished product assembly, finished product testing, packaging and shipping (this is our production process).
